ETA: ETA-17/1062

CPR: 1488-CPR-0726/W

DoP: PIRO/06-2018-09-10




PiroCoat A

Bucket:  10 kg

Intended for:  ​mineral wool pipe insulation  |  mineral wool in mixed penetrations

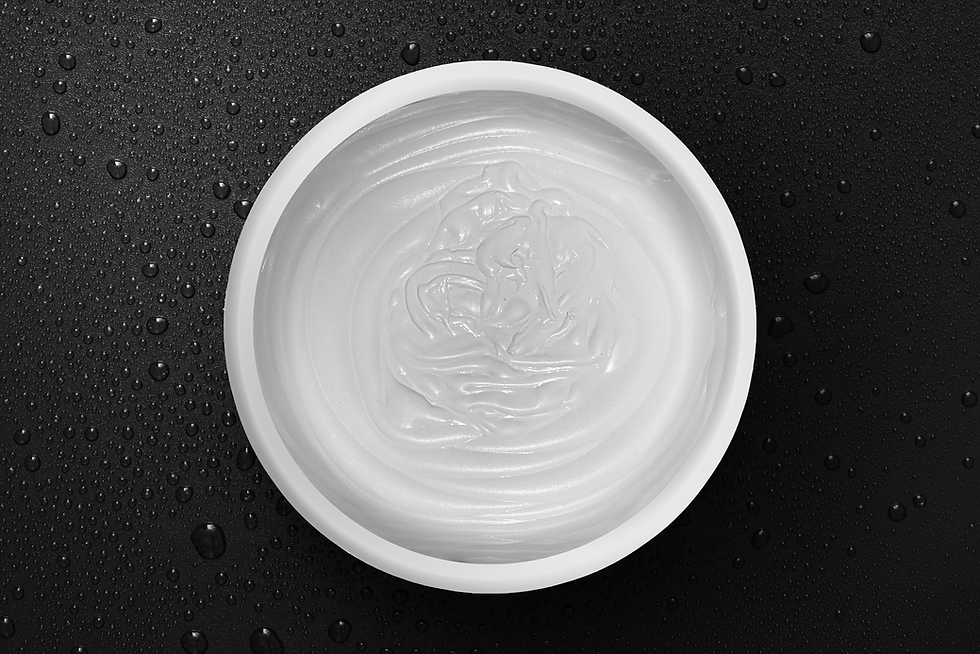

Thick cream-white mass of high density.




Prevent the spread
of fire to adjacent compartments.

Up to EI 120

Environment class: Z1, Z2

Ablation paste should be stored in a dry place with the temperature ranging from +5°C to +30°C for no longer than 10 months.

Pasta A zastosowanie 1.png
Pasta A zastosowanie 2.png
Pasta A zastosowanie 3.png

Application methods:

brush, putty knife, airless spray


Can be topcoated

with decorative water-based paints

pirocoataboxwiz new2.png
Description & use

PiroCoat A is a one-component ablation paste, which is a water dispersion of synthetic resin and pigments. The paste is produced in the form of a thick, creamwhite mass of high density. It is suitable for application with a spatula or, after its slight dilution with water, it can be applied hydrodynamically as a paint coating. The PiroCoat A coating is non-flammable. In order to change the color, PiroCoat A can be topcoated with decorative water-based paints. Before applying PiroCoat A, the surfaces to be protected should be vacuumed, degreased and slightly moistened with water.

PiroCoat A fireproof paste is intended for sealing service penetrations of certain types of flammable and metal pipes and cables. It is intended for fire protection: mineral wool used as an insulating cover, mineral wool boards in mixed penetrations, as a filling of gaps and expansion joints in walls and floors or as a sealing of plasterboards or filling between them. It has good adhesion to various surfaces, including ceramic, gypsum, mineral wool and metals. PiroCoat A coating is characterized by very good endothermic properties and strongly cools the surface while it is heated by the flame and blocks its spread under fire conditions. Penetrations seals made with PiroCoat A are classified in class EI.


Types of partitions where penetration seals
can be made using PiroCoat A

FLOOR: Floors built of concrete or reinforced concrete, with a thickness of not less than 150 mm and a density of not less than 1700 kg/m3
RIGID WALL: Walls built of concrete, (reinforced, cellular) solid brick, hollow or checkered brick, with a min. thickness of 100 mm or 125 mm and a min. density of 600 kg/m3

FLEXIBLE WALL:  Walls with a minimum thickness of 125 mm, with a skeleton structure built of steel or wooden sections


Paste must be
applied on
mineral wool

and on wall:
50 mm width


Stored in
10 kg buckets

Technical application

See the examples of
technical application

Pasta A rury metalowe w wełnie ściana 5.png
Pasta A przejście kombinowane 5.png

Check out our other
fireproof pastes and masses


PiroCoat I

Intended for metal pipes



Intended for cables


Piro Acrylic

Intended for gaps


PC A painted board

Intended for mixed penetrations

Have questions?

A qualified team of Pirosystem can help in the selection of passive fire protection system and other fire protection solutions.
